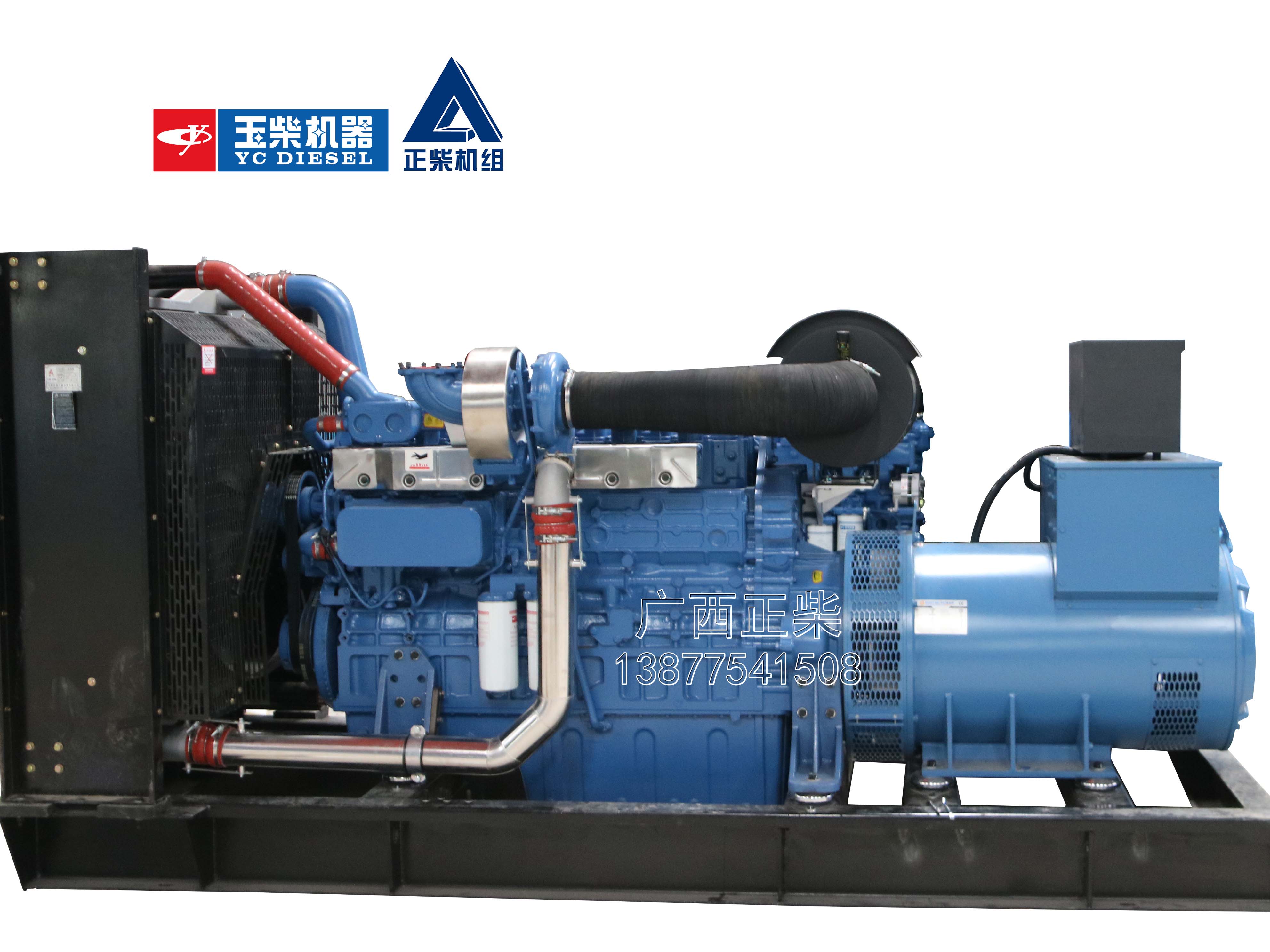

The 400KW diesel generator set uses the high-quality diesel engine YC6T660L-D20 produced by Yuchai as the power source, and uses the Deke motor to match the generator set. It has the characteristics of compact structure, easy operation, stable operation, low fuel consumption, low emissions, and low noise. All performance indicators meet the requirements of the national standard GB/T2820, and are suitable for industrial and mining enterprises, government offices and schools, post and telecommunications, border defense camps and other departments and units as conventional power supplies or backup power supplies.
Model Introduction
The YC6T/TD series engine is a product independently developed by combining the advanced technology of large engines at home and abroad. It adopts four-valve, turbocharged intercooler and other configurations. After being optimized and verified by Yuchai's advanced combustion development technology, it has the characteristics of energy saving and environmental protection, high reliability, strong loading capacity and good maintainability.
Model Features
•Four-valve + turbocharged intercooler technology, sufficient air intake, sufficient combustion, and low fuel consumption.
•Smooth operation, good transient speed regulation, strong loading capacity.
•High power density.
•High quality alloy cast iron cylinder block and cylinder head, high reliability.
•Good cold start performance, dual speed reduction starter + electronic control injection technology, fast start.
•Good parts versatility, high degree of serialization, one cylinder and one head structure, low comprehensive maintenance cost.
•Support dual energy starting.
ZC550GF1 Yuchai generator set technical parameters
|
|||
Main power (kW)
|
400kw
|
Standby power (kW)
|
450kw
|
Rated current
|
720
|
Power factor
|
COSΦ=0.8(lag)
|
Rated voltage (V)
|
400/230
|
Rated frequency
|
50HZ
|
Rated speed
|
1500
|
Wiring type
|
Star type (Y three-phase four-wire, 12-wire)
|
Overall dimensions
|
3400*1550*1850
|
Weight
|
3570kg
|
Noise
|
≤96dB(A)
|
Unit Type
|
Open shelf
|
Diesel engine technical parameters
|
|||
Model
|
YC6T660L-D20
|
Origin
|
Yulin, Guangxi
|
Normal power (kW ) |
441kw |
Standby power (kW) |
485 |
Type
|
Vertical, inline, water-cooled, four-stroke
|
Intake method
|
Supercharged intercooler
|
Cylinder-bore x stroke
|
6-145X165
|
Total displacement (L)
|
16.35
|
Generator technical parameters
|
|||
Brand/Origin
|
Deke/Anhui
|
Motor model
|
Deco 400
|
Protection level
|
IP23
|
Insulation level
|
H level
|
Rated power
|
400KW
|
Voltage control method
|
AVR (Automatic Voltage Regulator)
|
Excitation method
|
Brushless self-excitation
|
Winding temperature rise
|
<125K(resistance method)
|
Steady-state voltage regulation
|
≤±1%
|
Voltage adjustment range
|
>±10%Un
|
Overload capacity
|
100%/1h
|
Overcurrent capacity
|
150%/2min
|
Recovery time
|
≤1s
|
Volatility
|
≤±1%
|
Zhongzhi control panel
|
|||
Function description
|
Auto-start, auto-stop, auto-switch Control panel AMF LCD control panel, display voltage, current, frequency, water temperature, oil pressure. Generator set's Low oil pressure, high water temperature, overspeed, overload protection function????? Guangxi Zhengchai Generator Set Manufacturing Co., Ltd. Chinese and English display????????????????????????????????????????? Www.gxylzc.com
|
