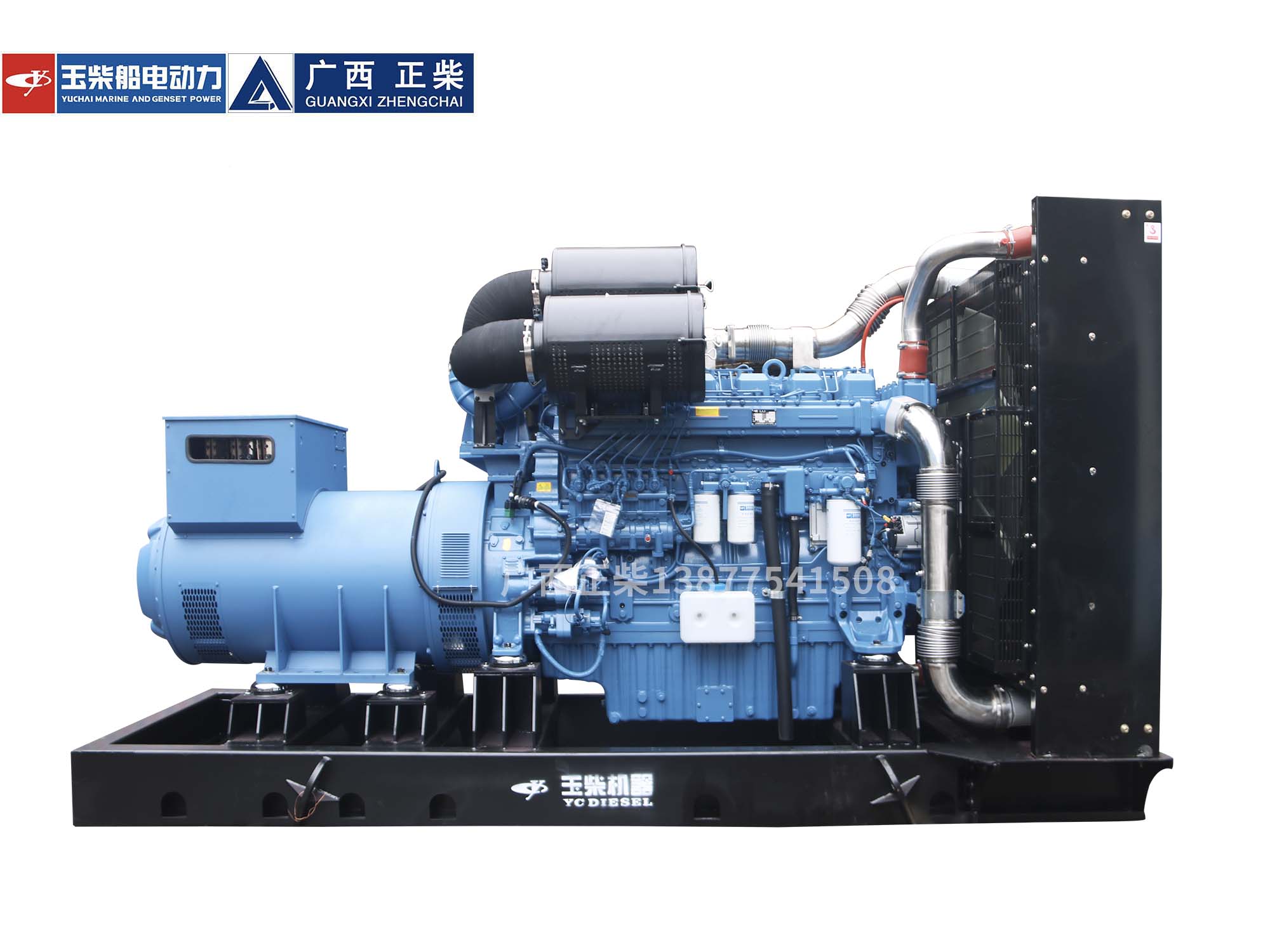

The unit uses the high-quality diesel engine YC6TF1320-D31 produced by Yuchai as the power source, and uses the generator set of Deke Motor. It has the characteristics of compact structure, convenient operation, stable operation, low fuel consumption, low emission, low noise, etc. All performance indicators meet the requirements of the national standard GB/20891, and are suitable for industrial and mining enterprises, government offices and schools, post and telecommunications, border defense camps and other departments and units as conventional power supply or backup power supply.

Technical parameters of generator set:
Model: ZC1238GF1
Main power (kW)	900kw	Standby power (kW)	1000kw
Unit current	1620	Power factor	COSΦ=0.8 (hysteresis)
Rated voltage (V)	400/230	Rated frequency	50HZ
Speed	1500	Wiring type	Star (Y three-phase four-wire, 12-wire)
Overall dimensions (mm)	4460*1780*2430	Weight	8500kg
Noise	≤103dB (A)	Unit Type	Open Frame

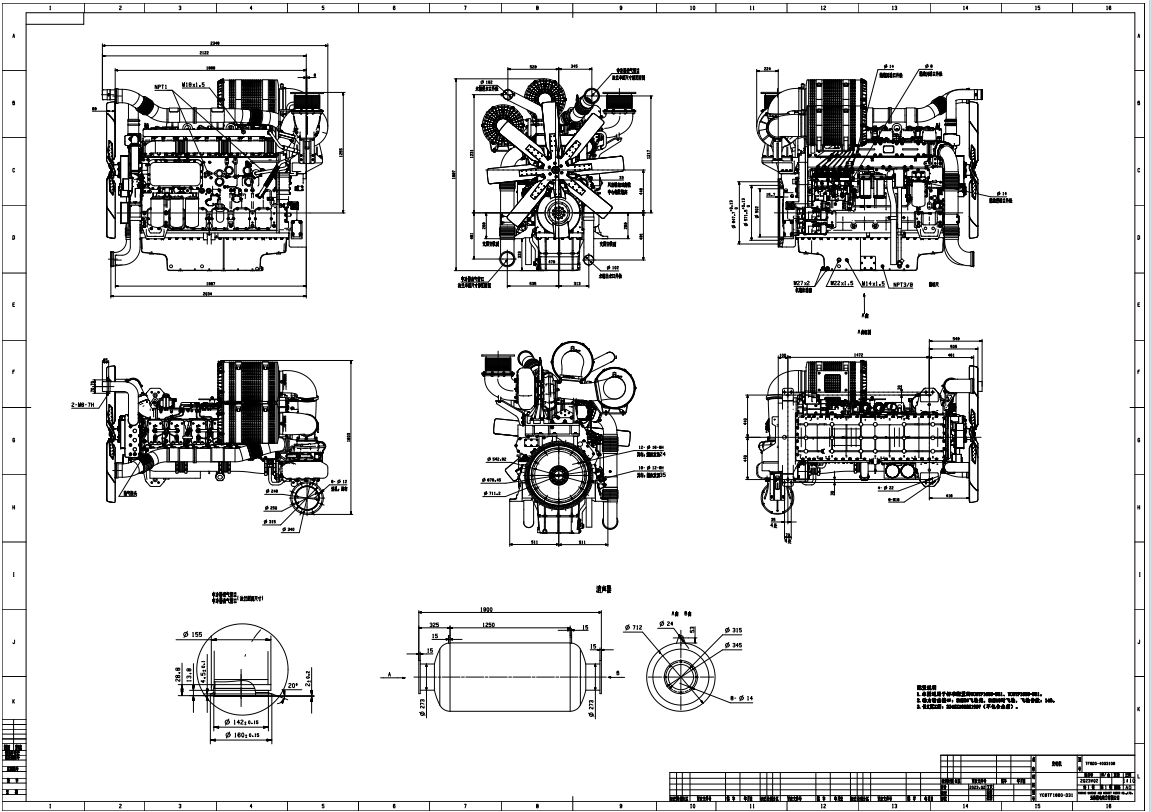

Serial Number	Name	Main Technical Parameters
1	Model	YC6TF1520-D31
2	Type	Vertical, inline, water-cooled, four-stroke
3	Intake method	Exhaust gas turbocharger, intercooler
4	Combustion chamber type	Direct injection type contraction ω combustion chamber
5	Number of cylinders	6
6	Number of valves per cylinder	4
7	Cylinder diameter? Mm	175
8	Piston stroke? Mm	220
9	Total piston displacement? L	31.75
10	Cylinder type	Wet cylinder liner
11	Fuel supply system	Electronically controlled unit pump
12	Lubrication method	Pressure, splash mixed type
13	Starting method	Electric start
14	Oil capacity? L	115
15	Working order	1-5-3-6-2-4
16	Crankshaft rotation direction	Counterclockwise (facing the power output end)
17	Normal power/speed? kW/(r/min)	/
18	Reserve power/speed? kW/(r/min)	1118/1500
19	Rated fuel consumption g/(kW·h)	≤220
20	Oil consumption? G/(kW·h)	≤0.6
21	MinimumNo-load speed? R/min	600-650
22	Fuel brand	Summer: GB 252-2011 superior grade or first grade 0, 5 ordinary diesel.   Winter: GB 252-2011 superior grade or first grade 0, -10, -20, -35 light ordinary oil (selected according to ambient temperature).
23	Engine oil brand	Summer: 15W-40 CH-4; Winter: 5W-30 CH-4, 10W-30 CH-4, 15W-30 CH-4, or diesel engine oil with a quality grade not lower than CH-4 that is suitable for the environment.
24	Maximum allowable intake resistance? kPa	5
25	Maximum allowable exhaust back pressure? kPa	10
26	Net mass? Kg	3400
27	Dimensions (length × width × height)? Mm	2350×1610×2000
Note 1: Dimensions may vary depending on configuration. Note 2: Standby power: corresponds to the emergency standby power (ESP) of ISO 8528. The maximum power of a variable power series that the engine runs for 200h per year when the public power grid fails or under test conditions, when maintenance is carried out according to Yuchai maintenance intervals and methods. The average output power allowed within a 24-hour operating cycle should not exceed 70% of the standby power.

Generator technical parameters:
Brand/Origin	Deco/Anhui	Motor model	Deco 900
Protection level	IP23	Insulation level	H level
Rated power	900KW	Voltage control mode	AVR (Automatic Voltage Regulator)
Excitation mode	Brushless self-excitation	Winding temperature rise	＜125K (resistance method)
Steady-state voltage regulation rate	≤±1%	Voltage adjustment range	＞±10%Un
Overload capacity	100%/1h	Overcurrent capacity	150%/2min
Recovery time	≤1s	Fluctuation rate	≤±1%
Control panel:
Brand	Zhongzhi
