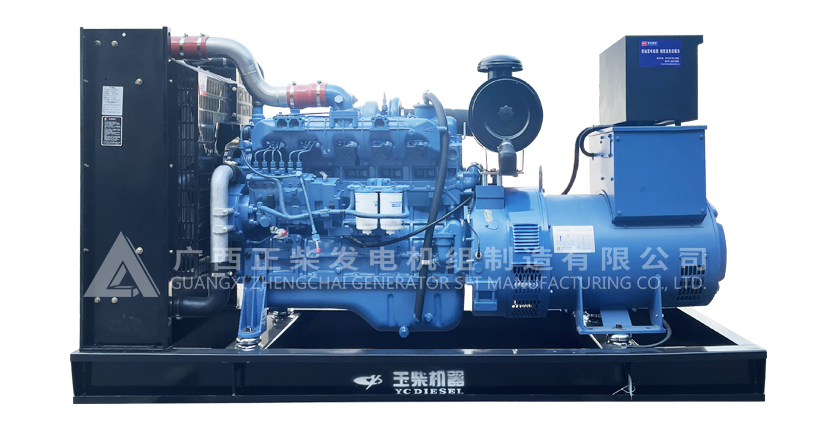

The 120KW diesel generator set uses the high-quality diesel engine YC6B180L-D20 produced by Yuchai as its power.
The main features of the Yuchai generator YC6B series:
1. Products developed by digesting and absorbing the consulting results of Germany's FEV; 2. The integral forged steel crankshaft, high-quality alloy cast iron cylinder head, and the body blank are all imported parts, with small size, light weight, low vibration, low noise, high reliability, and overhaul period greater than 12,000 hours; 3. The use of P-type high-pressure oil pump and P-type nozzle makes the combustion more complete, and the fuel consumption index is far better than that of domestic products with the same power;
4. The use of Yuchai's proprietary piston ring sealing technology and valve oil seal technology reduces the lubricating oil consumption by more than 20% compared with domestic products with the same power;
5. Ideal supporting power for 50~120KW generator sets.
Main power (kW)
|
120kw
|
Standby power (kW)
|
132kw
|
Rated current
|
216
|
Power factor
|
COSΦ=0.8(lag)
|
Rated voltage(V)
|
400/230
|
Rated frequency
|
50HZ
|
Rated speed
|
1500
|
Wiring type
|
Star type (Y three-phase four-wire, 12-wire)
|
Dimensions
|
2345*830*1240
|
Weight
|
1500 kg
|
Noise
|
≤102dB(A)
|
Unit Type
|
Open shelf
|
Diesel engine technical parameters
|
|||
Model
|
YC6B180L-D20
|
Origin
|
Yulin, Guangxi
|
Type
|
Vertical, in-line, water-cooled, four-stroke
|
Intake method
|
Supercharged intercooler
|
Cylinder-bore x stroke
|
6-108X125
|
Total displacement (L)
|
6.871
|
Compression ratio
|
17.5:1 |
Lubricating oil capacity (L) |
16 |
Fuel system
|
Electronic speed control | Starting method | Electric starter |
Generator technical parameters
|
|||
Brand/Origin
|
Deco/Anhui
|
Motor model
|
Deco 120
|
Protection level
|
IP23
|
Insulation level
|
H level
|
Rated power
|
120KW
|
Voltage control method
|
AVR (Automatic Voltage Regulator)
|
Excitation method
|
Brushless self-excitation
|
Winding temperature rise
|
<125K(resistance method)
|
Steady-state voltage regulation
|
≤±1%
|
Voltage adjustment range
|
>±10%Un
|
Overload capacity
|
100%/1h
|
Current capacity
|
150%/2min
|
Recovery time
|
≤1s
|
Volatility
|
≤±1%
|
Zhongzhi control panel
|
|||
Function description
|
Auto-start, auto-stop, auto-switch Control panelAMF LCD control panel, display voltage, current, frequency, water temperature, oil pressure. Low oil pressure, high water temperature, overspeed, overload protection function Guangxi Zhengchai Generator Manufacturing Co., Ltd. www.gxzcfd.com
|
