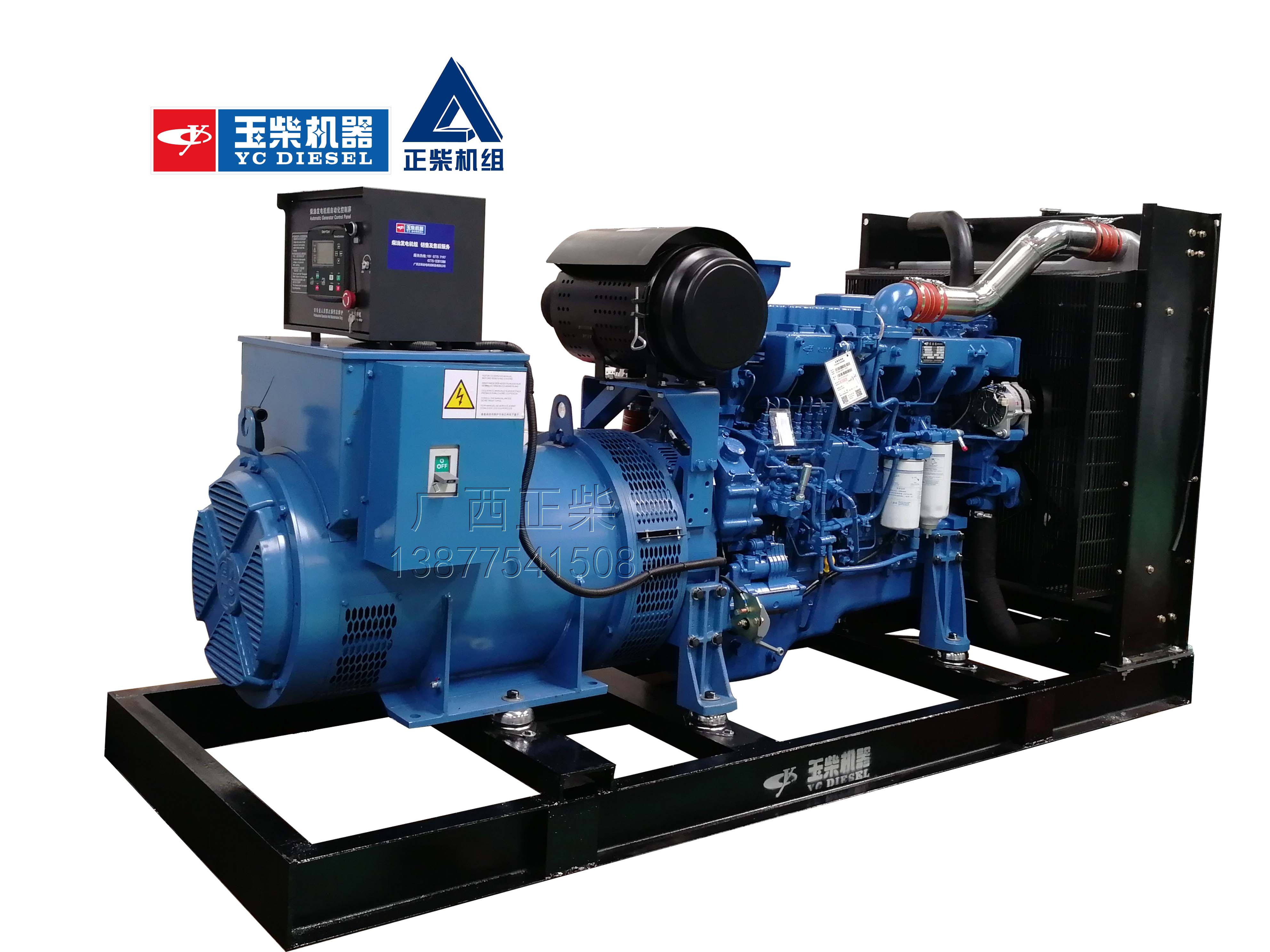

300KW Yuchai diesel generator set
Details:

The 300KW diesel generator set uses the YC6MJ500L-D21 high-power diesel engine produced by Yuchai as its power source. It adopts an integral crankcase, a rear gear chamber and patented point-line meshing technology, which has low noise; a wet cylinder liner structure, which is easy to maintain; it adopts the top P7100 oil pump, ground inertia small-aperture P-type injector, and Honeywell's new high-efficiency supercharger, which has low fuel consumption; it adopts Yuchai's proprietary piston ring sealing technology and valve oil seal technology to reduce lubricating oil consumption; it adopts 42CrMo forged steel crankshaft, high-pressure forging, and high-frequency quenching of the shaft diameter and fillet to improve fatigue strength and wear resistance; it is developed for reliability in strict accordance with the mechanical development procedures of famous European companies.

Introduction to the model:
■ Adopting an integral crankcase, rear gear chamber and patented point-line meshing technology, the noise is lower than similar domestic products;
■ Wet cylinder liner structure, easy to maintain;
■ Average effective pressure, power per liter and other indicators are at the leading level in China;
■ Adopting the top P7100 oil pump, low-inertia small-aperture P-type injector, Honeywell new high-efficiency supercharger, the fuel consumption index is far better than the domestic products with the same power level;
■ Adopting Yuchai's proprietary piston ring sealing technology and valve oil seal technology, the lubricating oil consumption is more than 20% lower than the domestic products with the same power level

Technical parameters of ZC410GF1 Yuchai generator set
Main power (kW)	300kw	Standby power	330kw
Rated current	450A	Power factor	COSΦ=0.8 (hysteresis)
Rated voltage (V)	400/230	Rated frequency	50HZ
Rated speed	1500	Wiring type	Star type (Y three-phase four-wire, 12-wire)
Dimensions	2900*1140*1500	Weight	2700 kg
Noise	≤102dB (A)	Unit type	Open frame
Diesel engine technical parameters
Model	YC6MJ500L-D21	Origin	Yulin, Guangxi
Normal power	330kw	Reserve power	363kw
Type	Vertical, inline, water-cooled, four-stroke	Intake method	Supercharged intercooler
Cylinder-bore x stroke	6-123X145	Total displacement (L)	10.338
Generator technical parameters
Brand/Origin	Deke/Anhui	Motor model	Deco 300KW
Protection level	IP23	Insulation level	H level
Rated power	300KW	Voltage control method	AVR (Automatic Voltage Regulator)
Excitation method	Brushless self-excitation	Winding temperature rise	＜125K (resistance method)
Steady-state voltage regulation rate	≤±1%	Voltage adjustment range	＞±10%Un
Overload capacity	100%/1h	Overcurrent capacity	150%/2min
Recovery time	≤1s	Volatility	≤±1%
Smart Control Panel
Functional Description	Self-start, self-stop, self-switching Control panel AMF LCD control panel, display voltage, current, frequency, water temperature, oil pressure. Generator set Low oil pressure, high water temperature, overspeed, overload protection function Guangxi Zhengchai Generator Set Manufacturing Co., Ltd. www.gxzcfd.com
