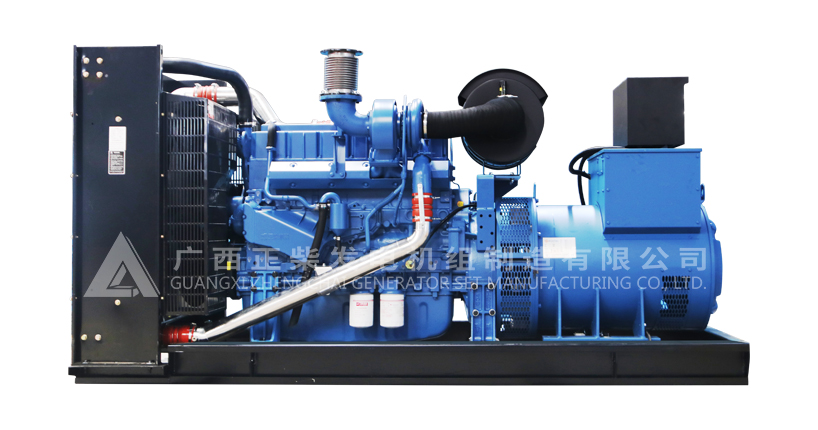

360KW diesel generator set
Details:
The unit uses the high-quality diesel engine YC6MJ600-D30 produced by Yuchai as the power source, and uses the Deke brand motor to match the generator set. It has the characteristics of compact structure, easy operation, stable operation, low fuel consumption, low emissions, and low noise. All performance indicators meet the requirements of national standards and are suitable for industrial and mining enterprises, government offices and schools, post and telecommunications, border defense camps and other departments and units as conventional power or backup power.
The YC6MJ series engine has been tested in the market for more than ten years and is widely used in heavy-duty buses, heavy-duty trucks, engineering machinery, ships and generator sets. After upgrading to the electronically controlled high-pressure common rail configuration, the emission meets the non-road third stage requirements, and there is sufficient margin, stronger power, lower fuel consumption, and better transient loading capacity.
Model features:
■High-pressure common rail fuel system.
■ Leading turbocharged intercooler, four-valve and electronic control technology, accurate and rapid combustion organization, good emissions, good transient response performance, and strong loading capacity.
■ High-strength cylinder block, alloy crankshaft, alloy steel connecting rod and internal cooling oil channel piston make the engine more durable, with a lighter and more compact structure among similar products.

■ Product performance meets the G3 performance level requirements in GB2820, and emissions meet the requirements of GB 20891 National III (T3).


ZC440GF1Diesel Generator Technical Parameters

Main Power (kW)

360kw

Standby power (kW)

400Kw

Unit current

648

Power factor

COSΦ=0.8 (hysteresis)

Rated voltage (V)

400/230

Rated frequency

50HZ

Speed

1500

Wiring type

Star type (Y three-phase four-wire, 12-wire)

Overall dimensions (mm)

3145*1140*1500

Weight

2600kg

Noise

≤96dB（A）

Unit Type

Open Frame

Technical Parameters of Diesel Engine

Model

YC6MJ600-D30

Origin

Yulin, Guangxi

Type

Vertical, inline, water-cooled, four-stroke

Intake method

Supercharged intercooler

Cylinder-bore x stroke

6-131X145

Total displacement (L)

11.73

Fuel system

Electronically controlled high pressure common rail

Starting method

Electric starter

Compression ratio

16.8:1

Minimum fuel consumption (g/kW.h)

≤203

Generator technical parameters

Brand/Origin

Deke/Anhui

Motor model

Deco 360

Protection level

IP23

Insulation level

H level

Rated power

360KW

Voltage control method

AVR (Automatic Voltage Regulator)

Excitation method

Brushless self-excitation

Winding temperature rise

＜125K (resistance method)

Steady-state voltage regulation rate

≤±1%

Voltage adjustment range

＞±10%Un

Overload capacity

100%/1h

Overcurrent capacity

150%/2min

Recovery time

≤1s

Fluctuation rate

≤±1%


Control screen

Brand

Zhongzhi
