Title:

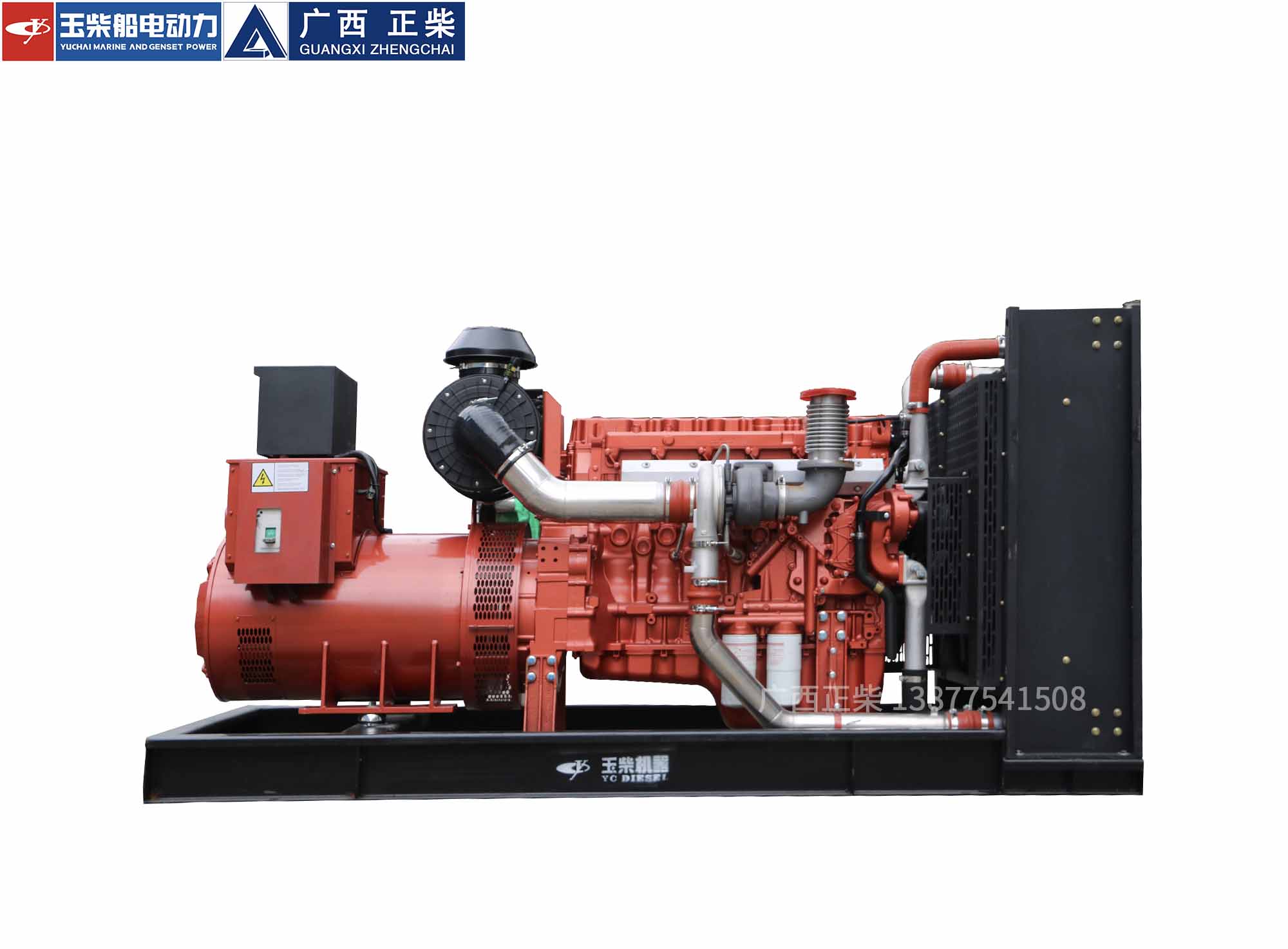

360KW diesel generator set
Details:
The unit uses the high-quality diesel engine YC6K600-D30 produced by Yuchai as the power source, and uses the Deke brand motor to match the generator set. It has the characteristics of compact structure, easy operation, stable operation, low fuel consumption, low emissions, and low noise. All performance indicators meet the requirements of national standards and are suitable for industrial and mining enterprises, government offices and schools, post and telecommunications, border defense camps and other departments and units as conventional power supplies or backup power supplies.

Model Introduction:

The latest technological achievements in the world today, with more than 30 technical invention patents. The reliability growth technology was used for the first time in the engine industry, breaking through the reliability weakness of Chinese manufacturing; the original introduction of precise combustion and electronic control technology, engine reverse cross-flow cooling technology and the successful innovative application of high-strength materials have greatly increased the service life of the engine.

Model features:

Electronic high-pressure common rail fuel system.
"Leading turbocharged intercooler, four-valve and electronic control technology, accurate and rapid combustion organization, good emissions, good transient response performance, strong loading capacity.
High-strength cylinder block, alloy forged steel crankshaft, alloy steel connecting rod and internal cooling oil channel piston make the engine more durable, with a lighter and more compact structure among similar products.
Product performance meets the G3 grade requirements in GB2820, and emissions meet the requirements of GB20891 National III (T3).

ZC500GF1Diesel Generator Technical Parameters
Main power (kW)	360kw	Standby power (kW)	400Kw
Unit current	648	Power factor	COSΦ=0.8 (hysteresis)
Rated voltage (V)	400/230	Rated frequency	50HZ
Speed	1500	Wiring type	Star type (Y three-phase four-wire, 12-wire)
Dimensions (mm)	314511401500	Weight	2600kg
Noise	≤96dB（A）	Unit Type	Open Frame
Diesel engine technical parameters
Model	YC6K600-D30	Origin	Yulin, Guangxi
Type	Vertical, inline, water-cooled, four-stroke	Intake method	Supercharged intercooler
Cylinder-bore x stroke	6-129X165	Total displacement (L)	12.94
Fuel system	Electronically controlled high pressure common rail	Starting method	Electric start
Compression ratio	16.5:1	Minimum fuel consumption (g/kW.h)	≤192
Generator technical parameters
Brand/origin	Deco/Anhui	Motor model	Deco 360
Protection level	IP23	Insulation level	H level
Rated power	360KW	Voltage control method	AVR (Automatic Voltage Regulator)
Excitation method	Brushless self-excitation	Winding temperature rise	＜125K (resistance method)
Steady-state voltage regulation rate	≤±1%	Voltage adjustment range	＞±10%Un
Overload capacity	100%/1h	Overcurrent capacity	150%/2min
Recovery time	≤1s	Volatility	≤±1%

Control screen

Brand

Zhongzhi
